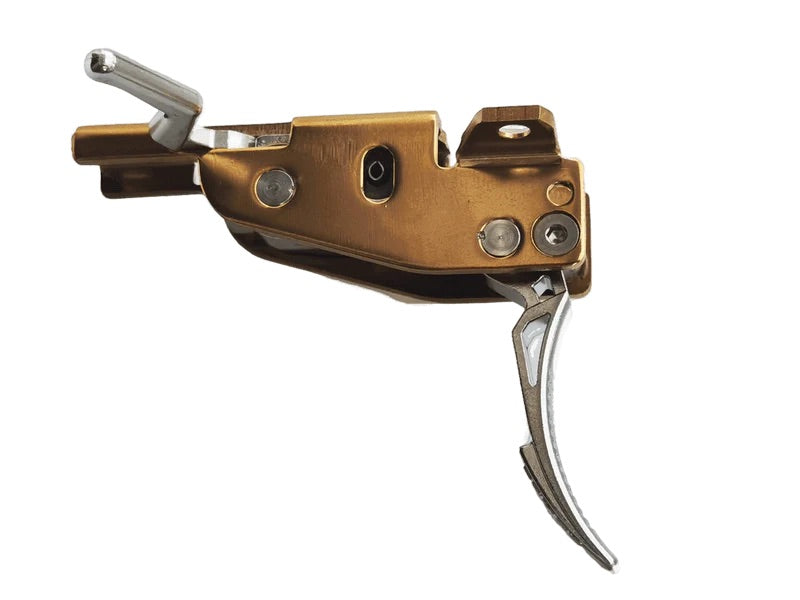

ERMES- Trigger mechanism - Future - Double roll gold

ERMES is always looking to the future, innovation and continuous development are our strength.

Derived from the Wings model, this mechanism includes all the characteristics of the higher category model, everything is miniaturized to adapt to a smaller box. Assembly will be done with only three screws.

Mechanism with patented system, operation with two rollers, one works in contact with the trigger and is integral with the coupling lever, the second roller in contact with the shaft is constrained to the housing by an axis and is free to move in an oval hole, this system stabilizes the shaft at the time of firing, the load is distributed uniformly reducing and practically eliminating friction.

The line trigger interacts with the shaft coupling lever with a system that all manufacturers have now recognized as the best system and adopted worldwide. We are the inventors of this innovation, just as we were the first to adopt rotational support points adapted to reduce the weight of the lead.

Nothing has been left to chance, a well-calibrated torsion spring assists the movement of the trigger with a sensation of extreme softness when firing.

The box is uniquely simple and elegant, it is molded from 2mm thick sheet metal with very minimal precision, we have abandoned laser cutting as we do not consider it suitable for our needs. mechanisms.

First use a particular design and obtain the 3 anchor points from a single sheet, without welded parts.

The details are modeled in an elegant and ergonomic way, the thread trigger does not cut the thread, the trigger has a grip to secure the finger, the holes are then reworked with centesimal reamers, to ensure perfect rotation, the Thicknesses used are 10 mm for the coupling lever, and 7 mm for the trigger, the head of the trigger has a thickness of 10 mm.

The assembly has also been carefully designed, simple but elegant at the same time, by inserting the shaft for rearming the mechanism you will be amazed at the smoothness of the engagement and with a little simple pressure... click, and everything moves harmoniously, the mechanism is reset!!!

For large productions we can supply a steel safety device inside the mechanism itself.

Tested with a load of 450 kg. All components are in AISI 316L stainless steel excluding the roller for hanging the rod in 17-4 ph.
